Configuring and Extension on a Yealink Desk Phone

How to configure an extension on a Yealink Desk Phone

View this guide in Tango

1. Navigate to the Yealink Desk Phone IP address in your web browser

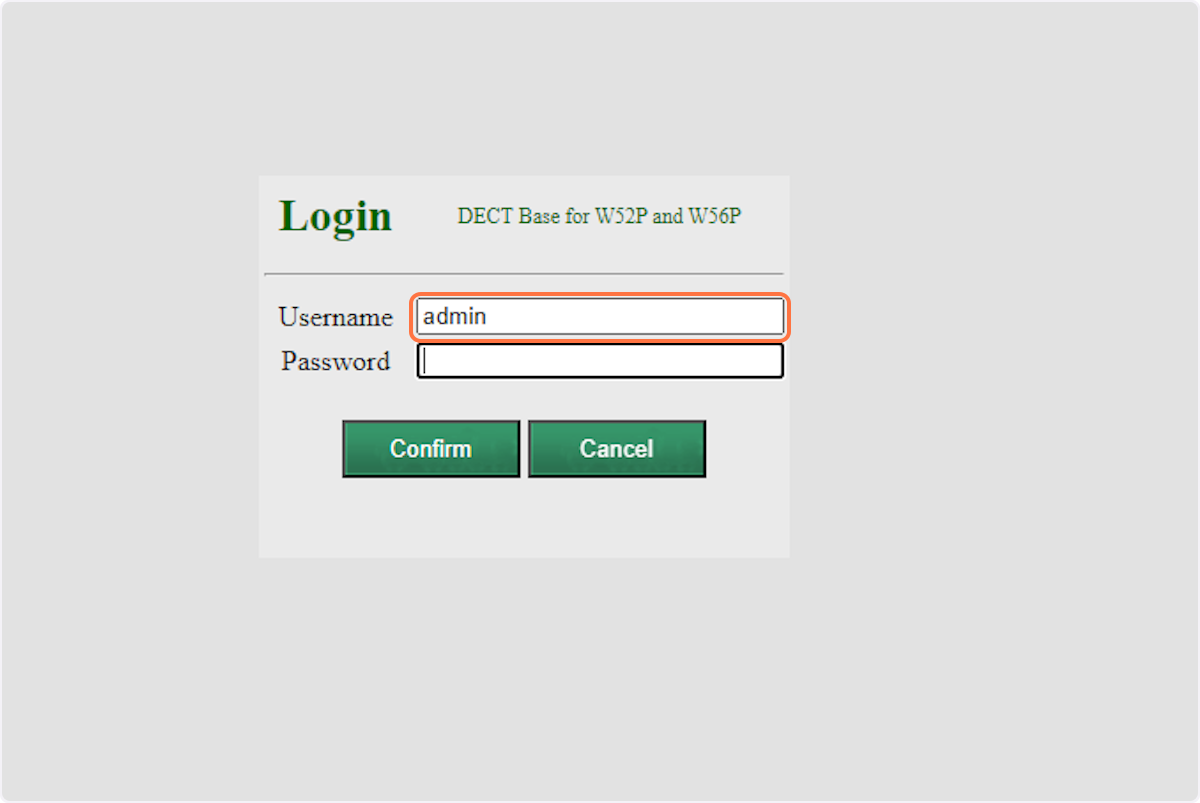

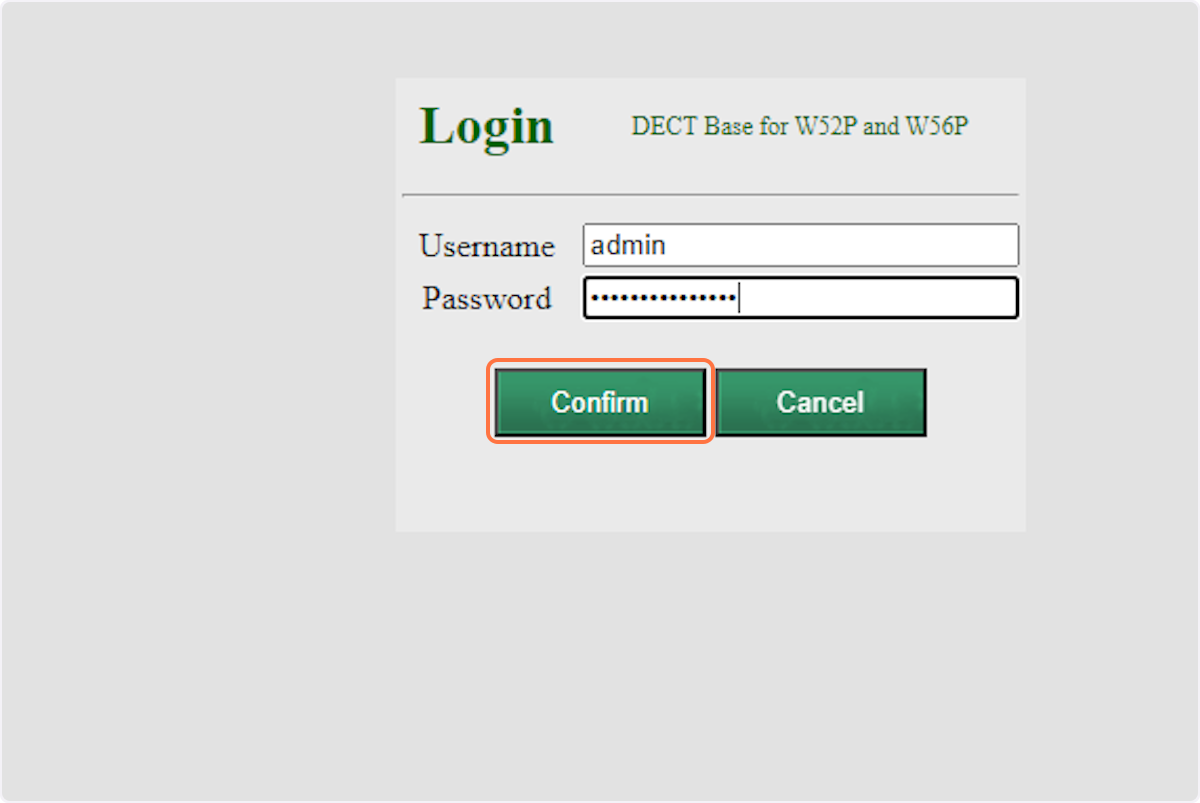

2. From the Yealink Login screen, enter the username

Default is admin

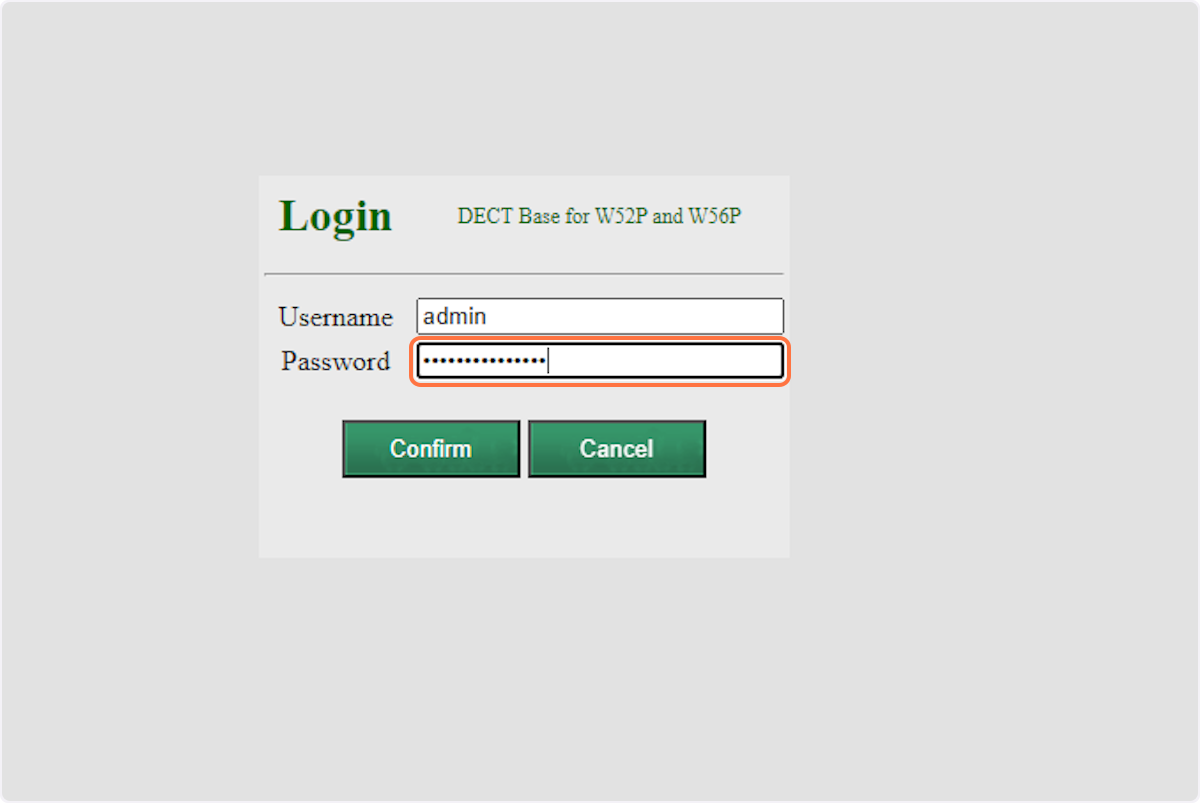

3. Enter the password

Default is admin

4. Click on Confirm

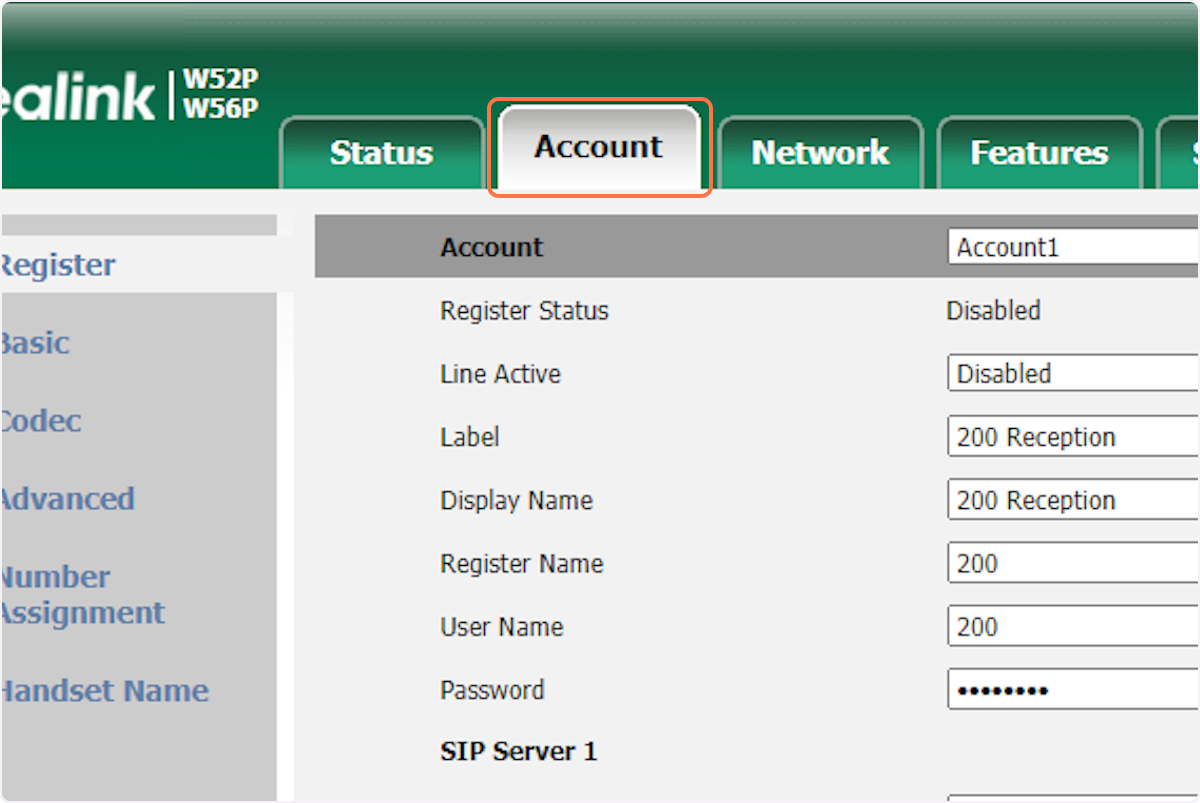

5. Click on the Account tab

6. Select the account that you want to configure from the dropdown menu

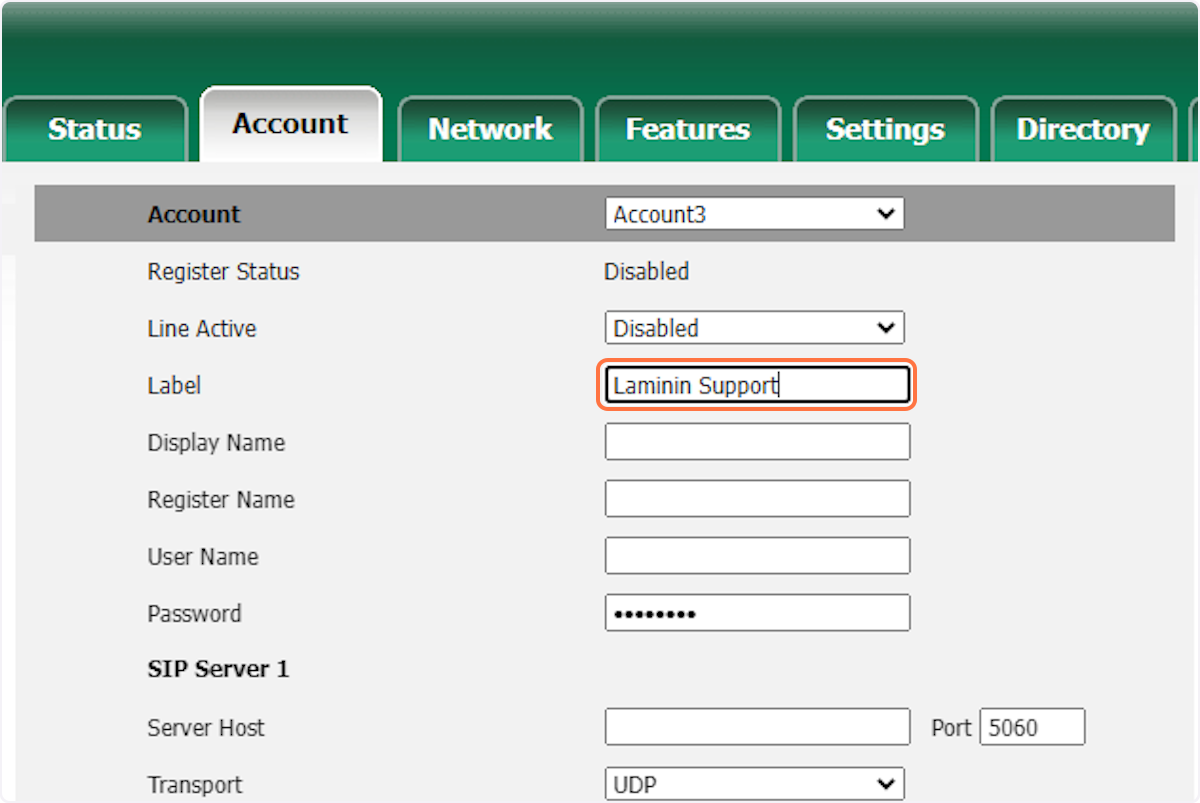

7. Enter the Label for this account

This name is to easily identify the account

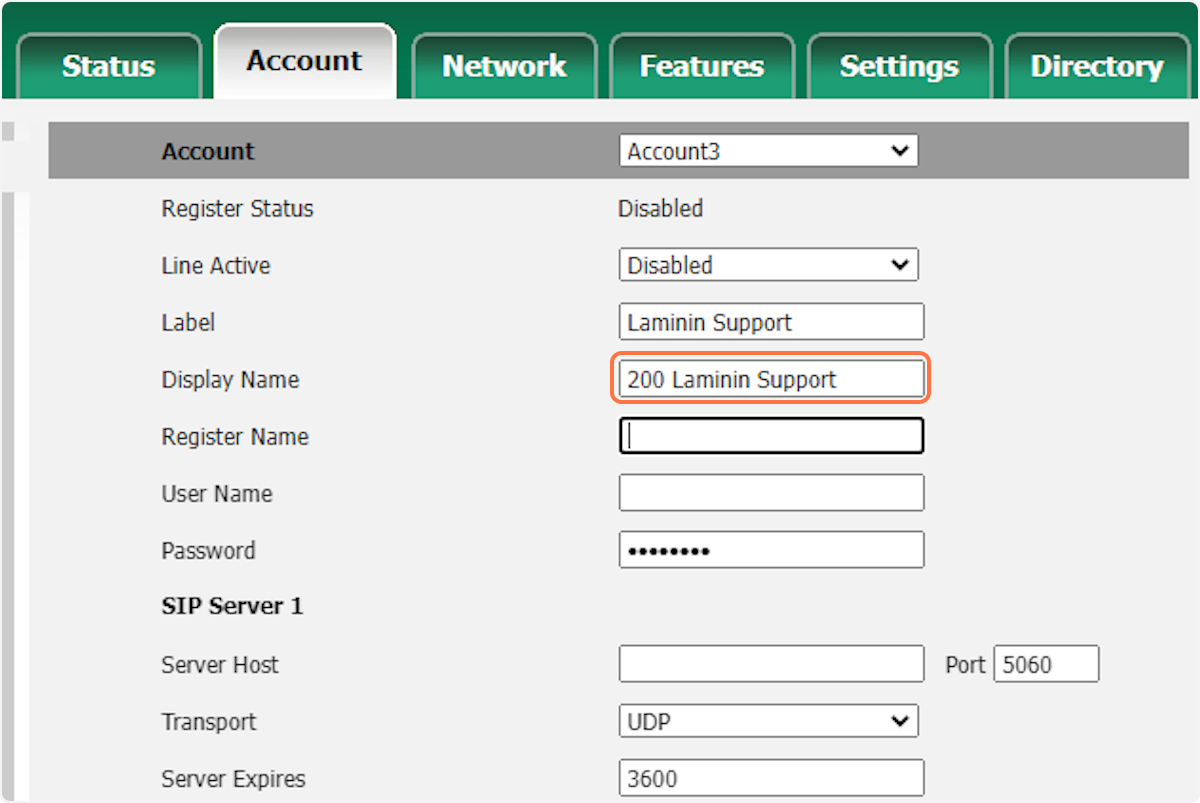

8. Enter the Display Name

This name will display on the phone

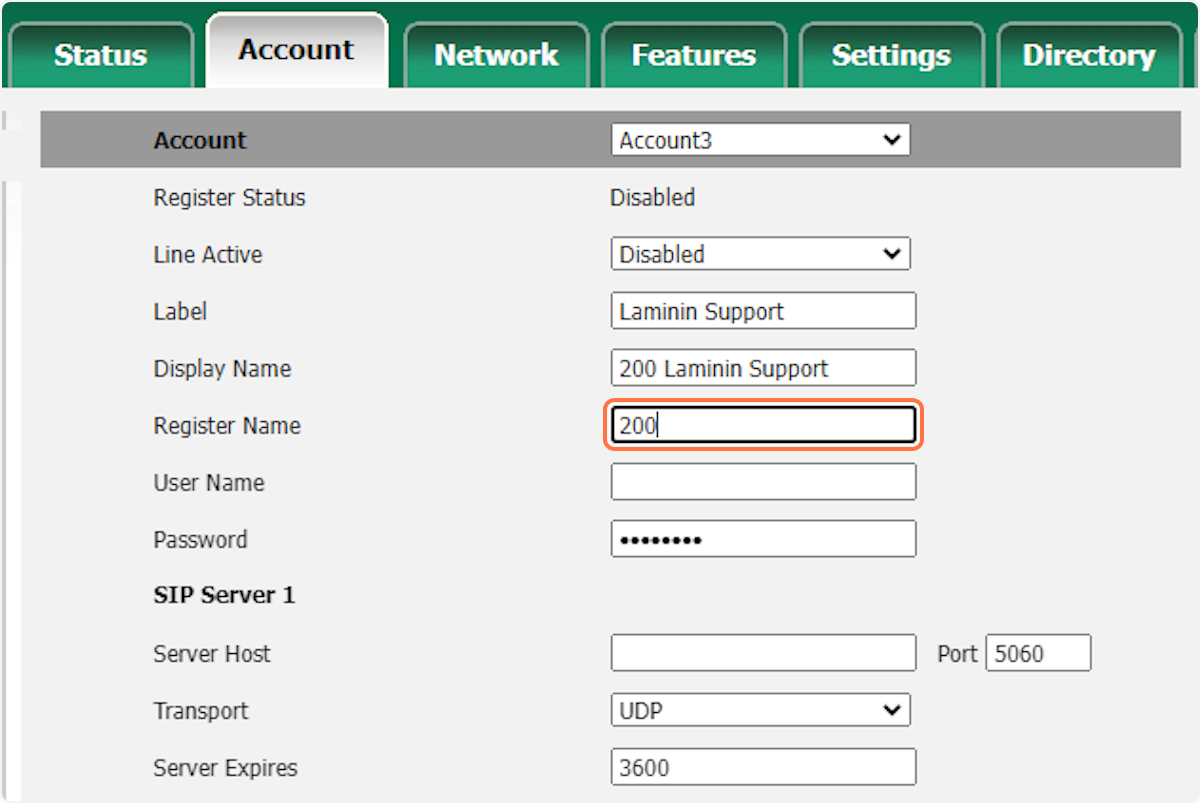

9. Enter the Extension Register Name

You can get this information from the Extension User Device in VitalPBX

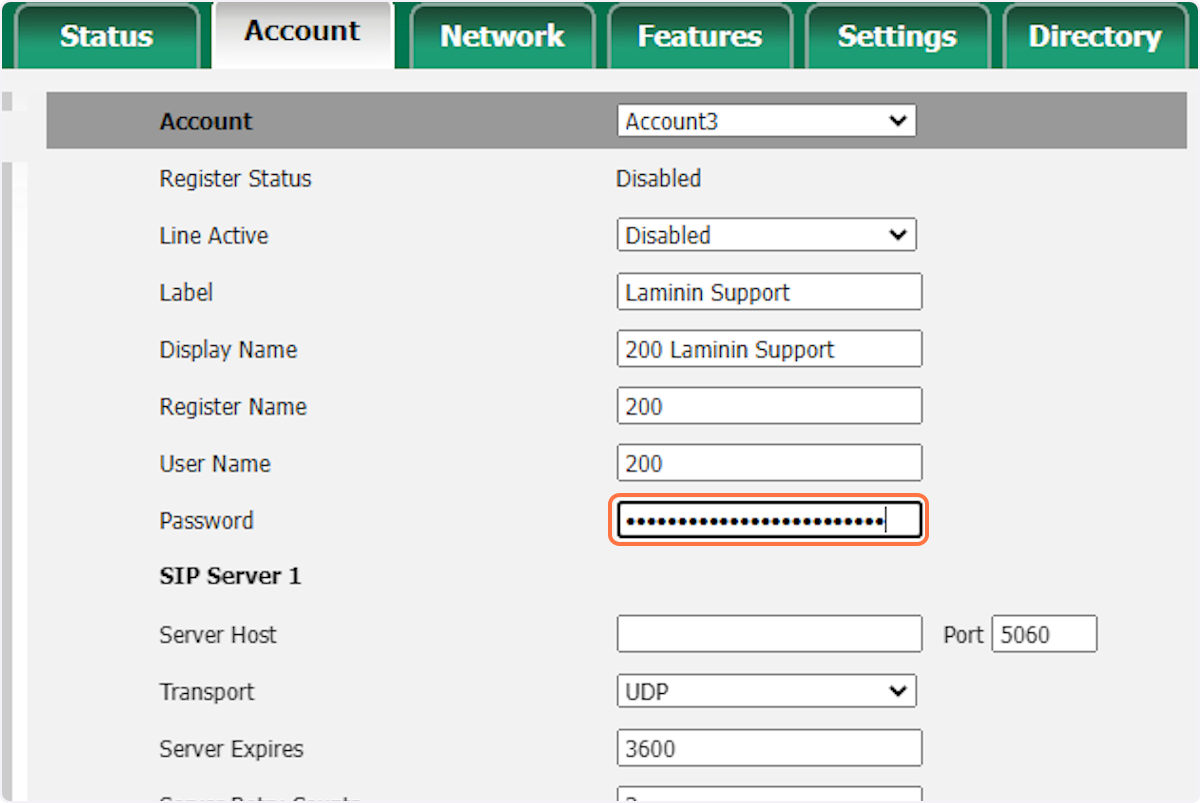

10. Enter the Extension Password

You can get this information from the Extension Password in VitalPBX

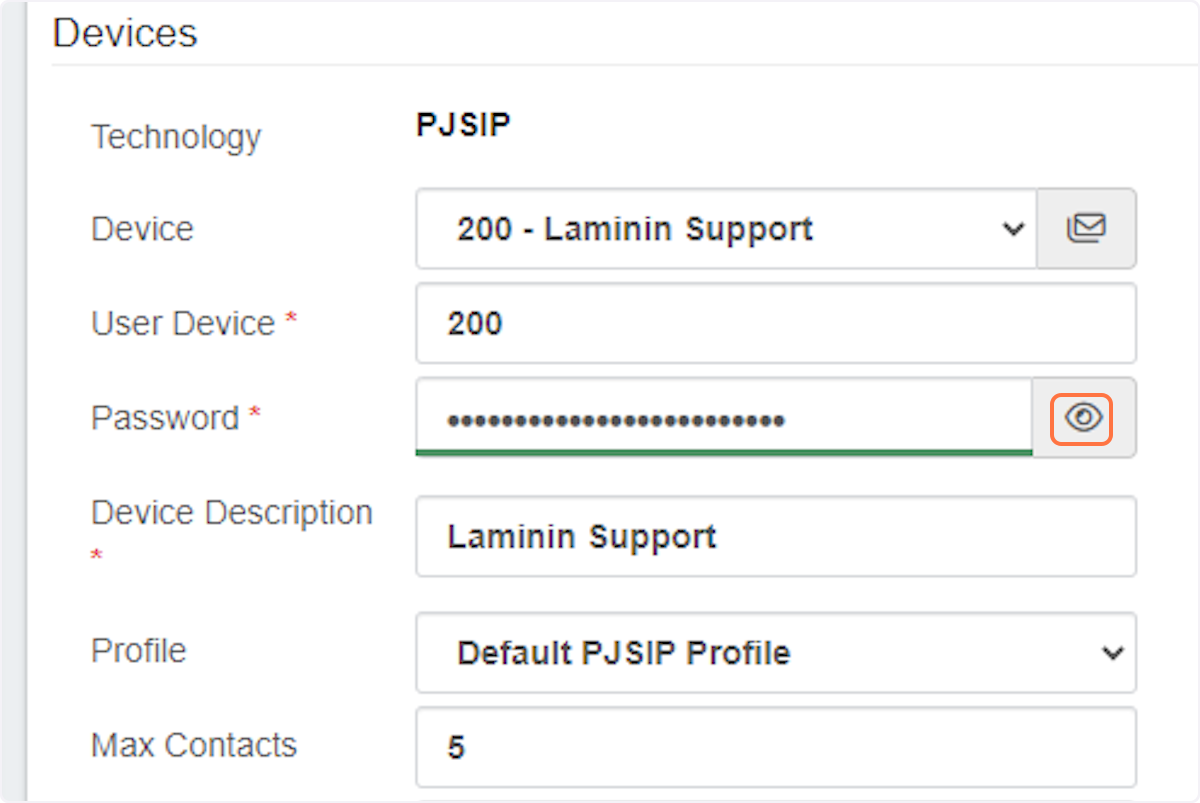

11. In VitalPBX you can view the User Device and Password for the extension you want to configure on the Yealink Desk Phone

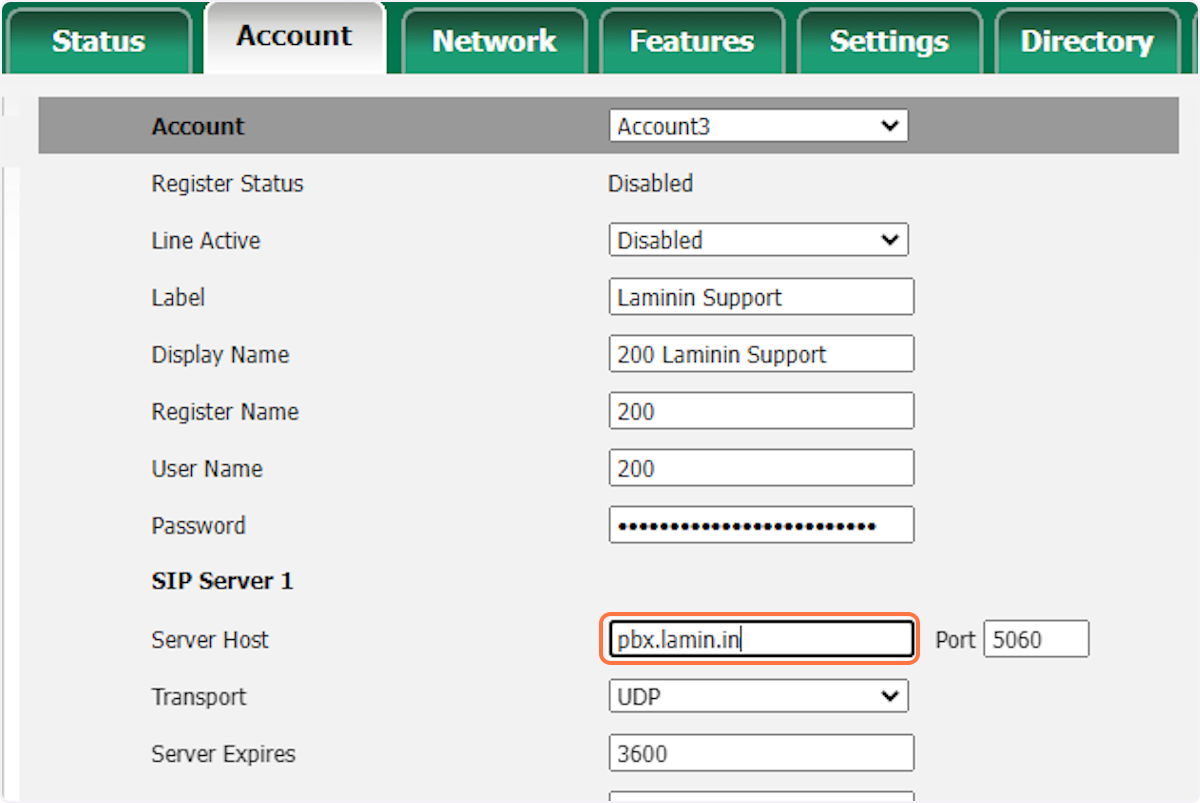

12. Enter the PBX URL

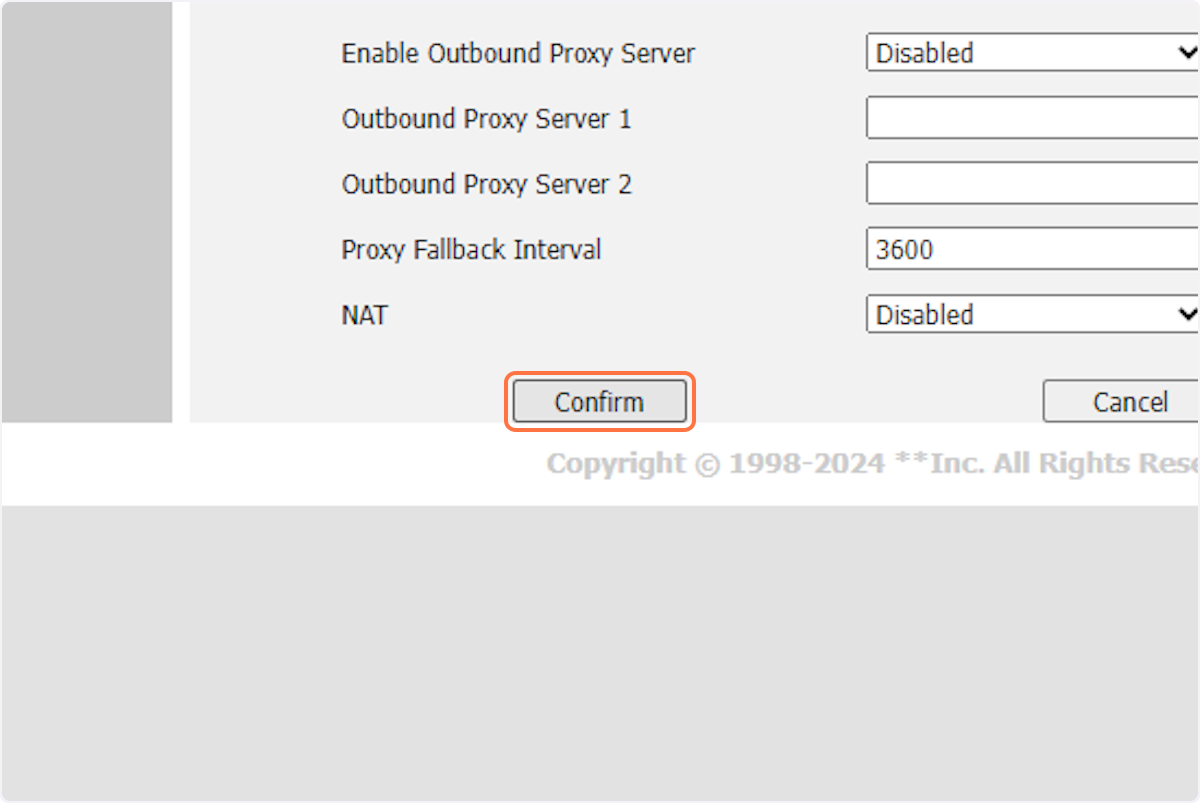

13. Click on Confirm

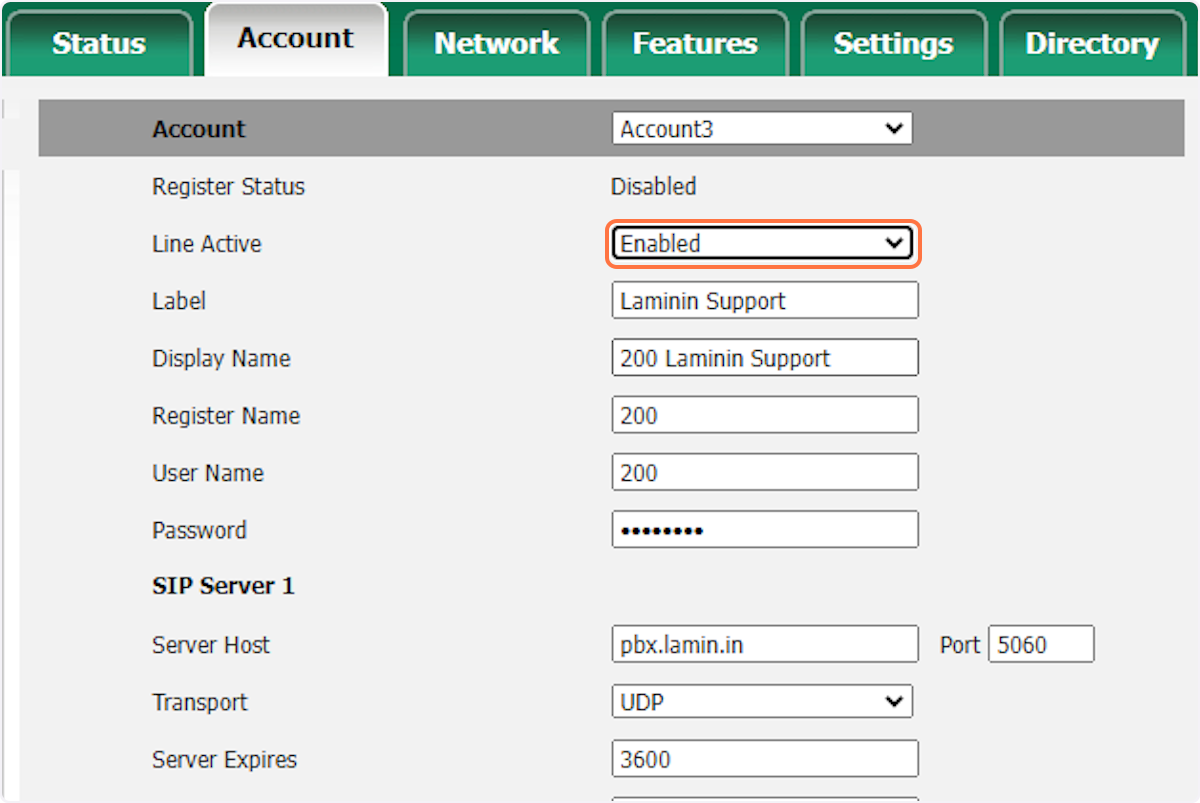

14. Select Enabled

15. Click on Confirm

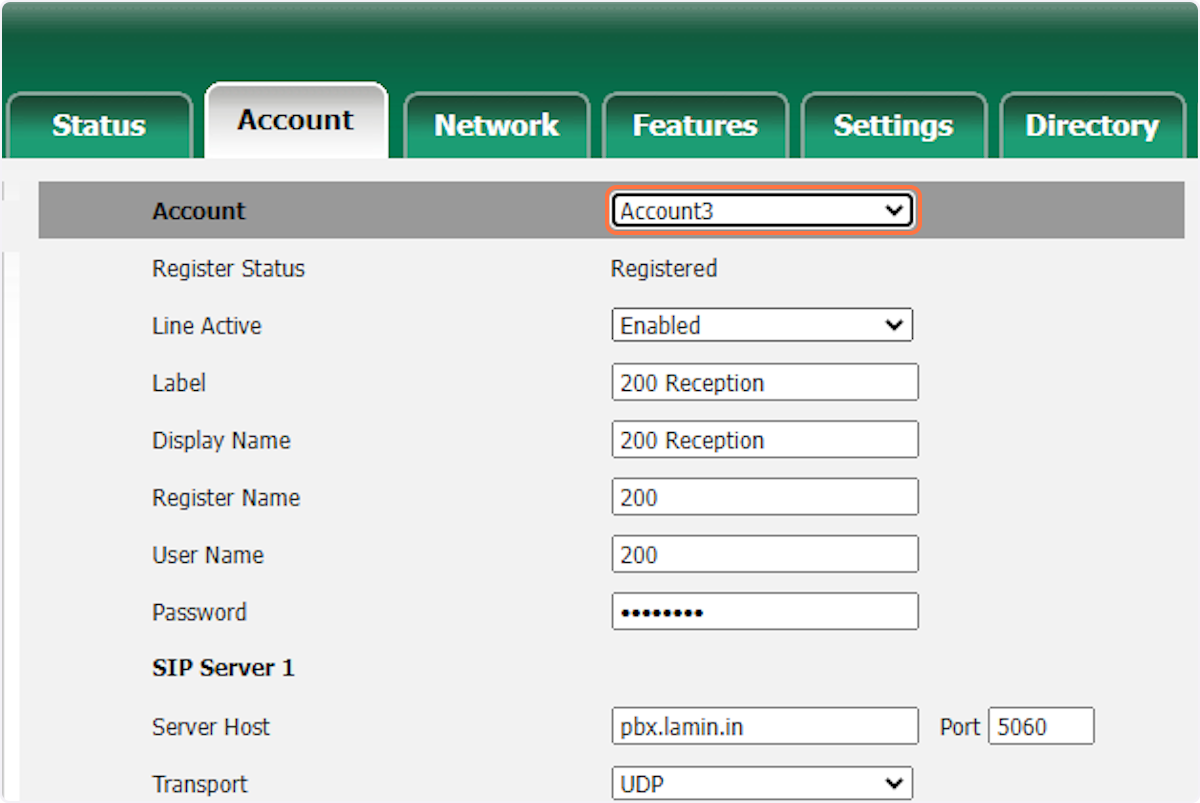

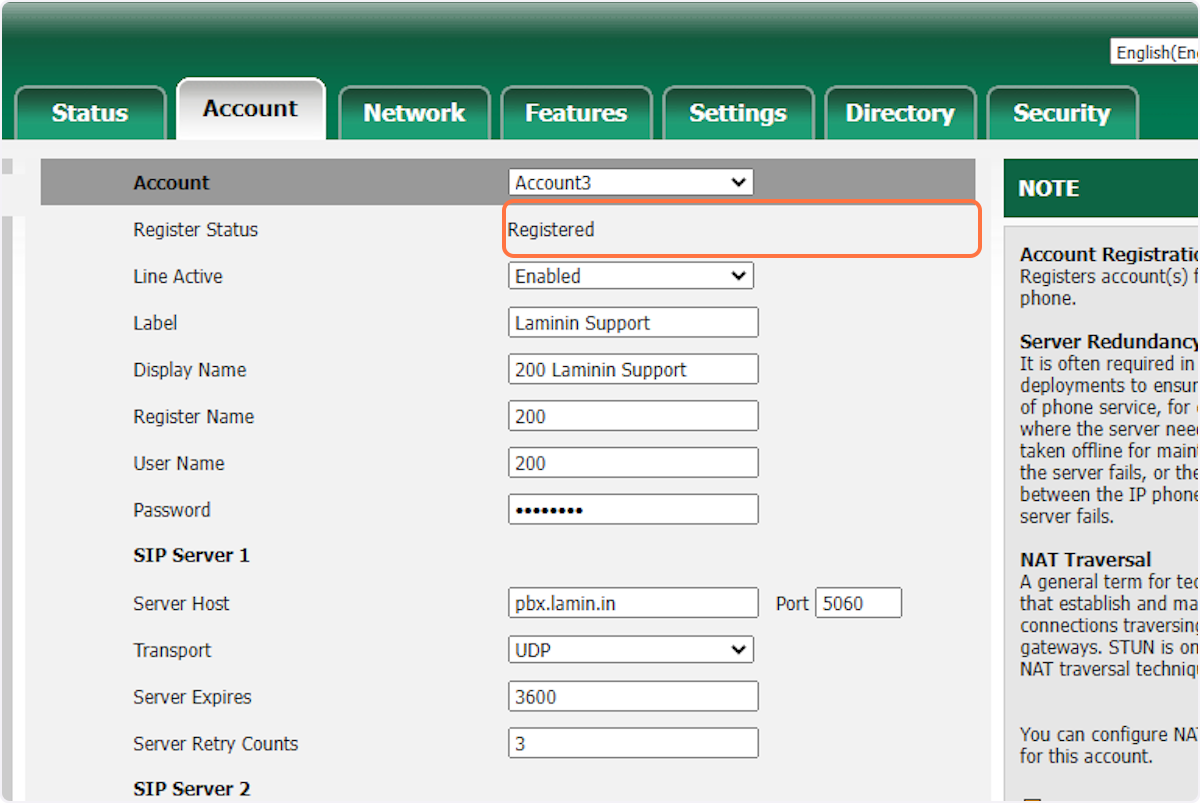

16. After a few seconds the Register Status should change to Registered

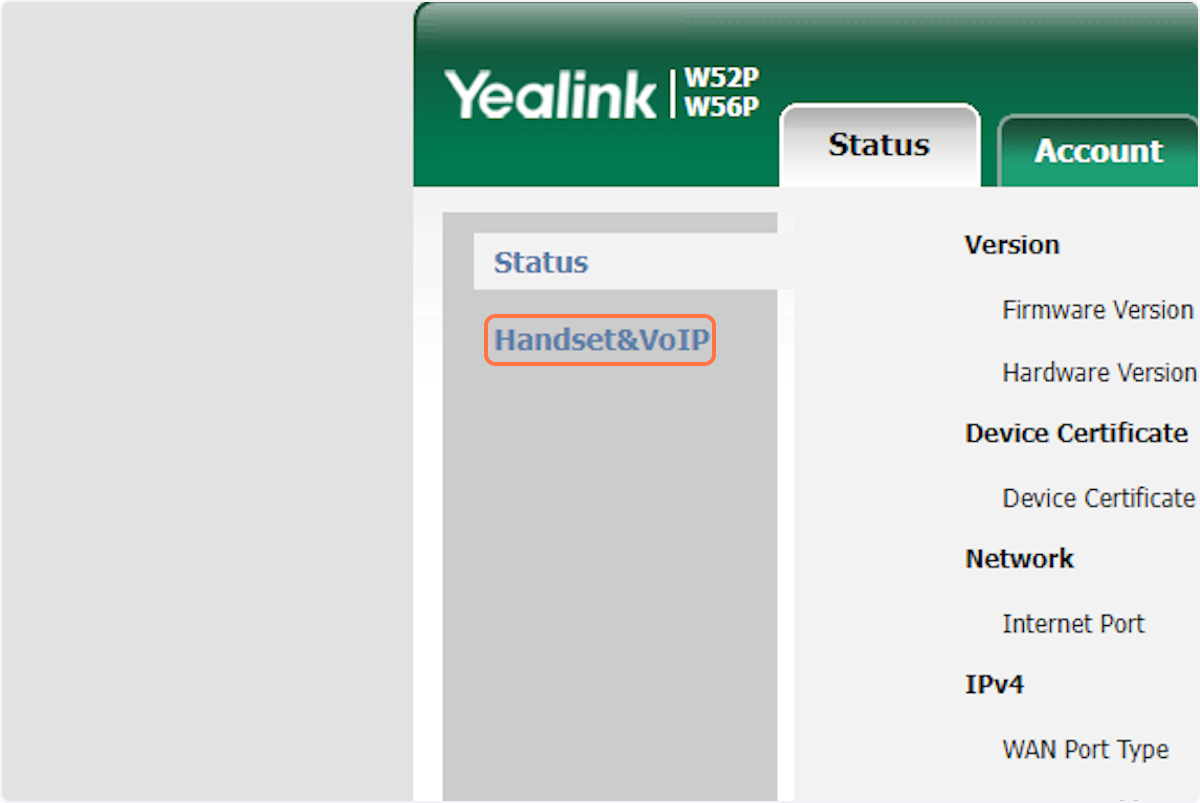

17. Click on the Status tab and then on Handset&VoIP

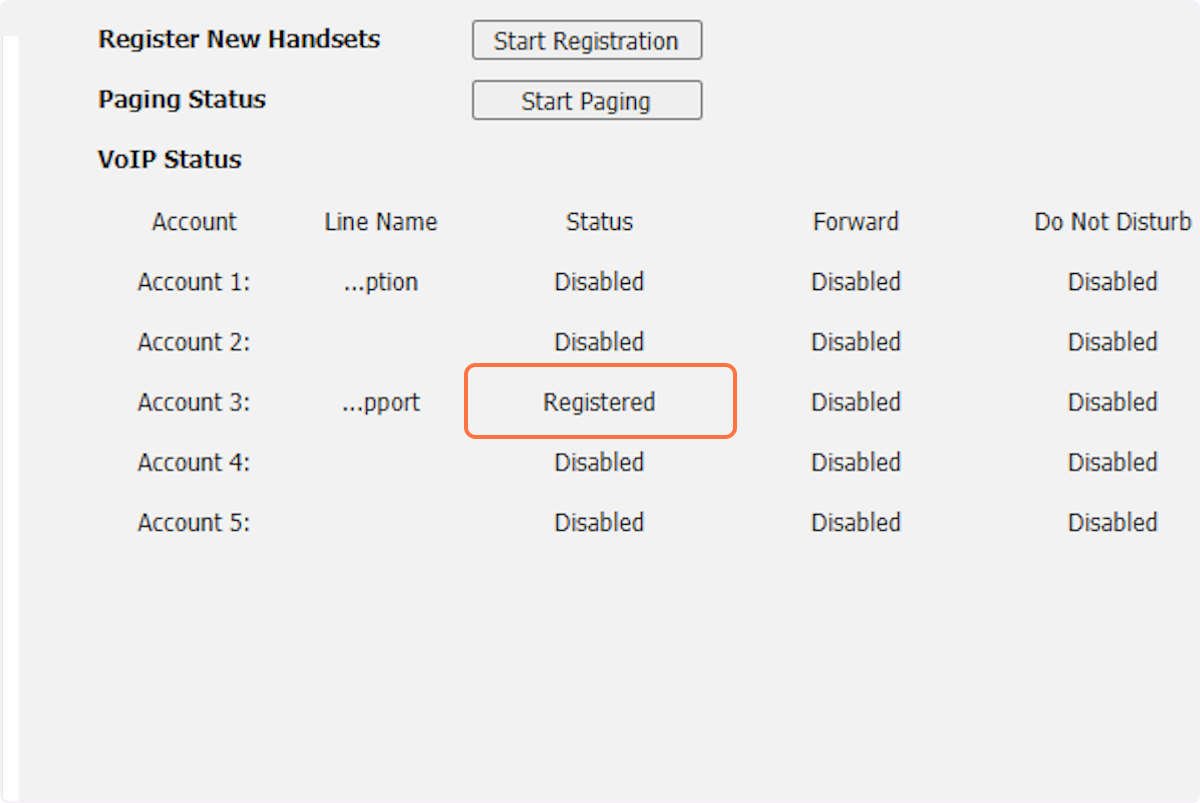

18. You should also see your account is Registered from this screen

For any questions or additional support, please mail our team at support@lamin.in
